John Deere E110
1690GX
Lawn and Garden
Ride on mowers
100 Series
- Single-cylinder 14 kW (19 hp) engine
- 107 cm (42 in.) Edge™ Cutting System
- Two Pedal Hydrostatic Transmission
- Mows up to 8000 m²
Machine Features
Two-year or 120-hour bumper-to-bumper warranty is standard
An exclusive 2-year or 120-hour (whichever comes first), single-source, bumper-to-bumper warranty* is standard for all John Deere 100 Series Tractors.
- The warranty is hassle free, with one company handling all of the paperwork.
- Premium features of 100 Series Tractors allow for this longer warranty period, with more coverage than comparable tractors.
*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.
CargO Mount™ system makes installation of rear bagger and other attachments easy




The CargO Mount system is a combination of front- and rear-mounting points providing convenient and easy installation of the sun canopy, rear bagger, and other attachments.
The Edge™ cutting system gives superior performance


The Edge cutting system has been trademarked to emphasize the advantages of the John Deere mower deck designs. They give the mower superior convenience, performance, and reliability.
The 107-cm (42-in.) two-spindle, three-in-one mower is constructed of 13-gauge, 2.3-mm (0.090-in.) steel for long life:
- The mower deck has a rolled lip to provide greater strength and protection.
- The deep-deck mower design lifts grass for a clean, even cut.
- The smooth underside of the mower prevents grass buildup and evenly disperses grass clippings.
- The rolled outer edge of the deck provides extra strength and protection.
- Dual-stage E-coat and powder paint coatings provide extra protection from rust.
- No tools are required to go from mulching to side discharge to rear bagging.
- The blade-to-spindle design provides a unique mounting system for the mower blade that provides extra safety and convenience.
- A mulch cover is an optional attachment that can be installed without tools to allow mulching with the standard mower blades.
- A high-performance mulch plug is an optional attachment that includes a mulch plug and special mulching blades for excellent performance.
- A cut-and-throw, 229-L (6.5-bu) rear bagger is sold separately.
Mower wash port


A wash port is provided to make cleaning the underside of the mower deck easy:
- A hose connector is included with mower deck.
StarLock™ blade design

The StarLock blade design keeps the blade bolt at the correct torque for easy removal.
Optional blades for difficult mulching or bagging conditions are available.
Mower deck height adjustment

A spring-assisted, low-effort, ergonomically-designed lift lever simplifies setting and adjusting the mower cut height:
- Increments of 0.64 cm (0.25 in.) allow the operator to fine-tune the cut height from 2.5 cm (1 in.) to 10.2 cm (4 in.).
- The lift handle is shaped and located for easy use, and is out of the way of entering or exiting operators.
Operator station designed for operator comfort and convenience


The operator station is designed for operator comfort and easy operation:
- Controls are positioned where they are easy to reach and use to control the tractor.
- The steering wheel is positioned and angled to give the operator plenty of room and steering comfort.
- The seat is tilted back at the optimum angle to provide the most comfortable operator position.


Controls are easy to see and use:
- Large, three-spoke steering wheel for greater operator comfort and control
- Ignition switch is on the dash for starting ease
Wide footrest areas with non-slip, anti-vibration floor mats are provided for operator comfort:
- Optimum operator comfort
- Debris-removing channels help keep the footrest area clean and dry


The operator seat has a 27.9-cm (11-in.) back height for good support. It can be easily adjusted forward or rearward while in the seat, with seat travel of 14 cm (5.5 in.) and 10 different positions.

Two long seat springs give plenty of seat travel to smooth out the ride, keeping the operator comfortable while operating the tractor.
The seat can be tilted forward for protection from the elements and to provide easy access to the fuel tank.


Storage compartment and beverage holder, located on the right side fender, are conveniently located and easy to use.
NOTE: A storage compartment cover is standard on E120 and E130 Tractors and optional on the E110 and E140.
Serviceability is convenient with an easy-open hood


The one-piece hood opens easily to permit checking and servicing the engine:
- Important service points are located within easy reach.
- A service interval decal is provided inside the tractor hood for convenience when servicing the tractor.
- Hourmeter includes a service reminder feature that flashes for two hours when a lubrication or mower/engine service interval has been reached.


The engine fuel and oil filters, the oil check/fill tube, and the oil drain tube are exposed for serviceability when the hood is opened.
The seat tilts up and out of the way to make adding fuel easy.
The 100 Series Tractors are covered by a 2-year/120-hour bumper-to-bumper warranty*:
- Premium features of 100 Series Tractors allow for this long warranty period.
*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.
Instruments and controls are easy to find and convenient to use


Instruments and controls
The contoured dash has clean, attractive styling:
- Controls are color coded and labeled for easy identification by the operator.
- Controls are logically placed and easy to reach.
- The hourmeter makes it easy to tell when oil changes and other maintenance should be performed.
- The service reminder feature will indicate that a general lubrication or mower/engine service interval has been reached.
- When service is required, arrows will periodically flash for two hours.
- Functional design of the controls provides good appearance and a comfortable feel.
Side-by-side transmission control pedals


Side-by-side foot pedals control the speed and direction of travel:
- Automotive-type accelerator controls ensure easy operation.
- Operator can change direction without lifting foot off the platform.
- Large pedal surface gives superior operator comfort.
Cruise control (E120 and E130)

Cruise control is available on the E120 and E130:
- To engage, lift up on the cruise lever and hold until the foot is removed from the forward pedal.
- For emergency stop, the cruise control can be released by pushing on the brake pedal or the forward pedal.
Mower deck height adjustment

A spring-assisted, low-effort lift lever simplifies setting and adjusting the mower cut height:
- Increments of 0.64 cm (0.25 in.) allow for fine-tuning the cut height.
- Cut height is adjustable from 2.5 cm (1 in.) to 10.2 cm (4 in.).
Parking brake control


The parking brake control is conveniently located for easy access. It holds the brake pedal securely in the locked position.
Manual power take-off (PTO)

The mower deck is engaged with an easy-to-see and easy-to-use yellow lever on the dashboard. Its placement on the right side leaves a lot of room on the left, the entry side of the tractor, for the operator to get on and off the tractor.
Hydrostatic transmission gives an infinite choice of ground speeds


A Kanzaki® Tuff Torq® hydrostatic transmission gives an infinite choice of speeds and makes changing the direction of travel easy. Side-by-side foot pedals control the speed and direction of travel:
- Automotive-type accelerator controls ensure easy operation.
- Operator can change direction without lifting foot off the platform.
- Large pedal surface gives superior operator comfort.

Appropriate transmissions are used in each model, depending on rear tire size and tractor performance requirements, to ensure excellent performance and reliability:
- Tuff Torq TLT200A - E110, E120, E130
- Tuff Torq TLT200B - E140
Standard cruise control (E120 and E130)

An easy-to-use cruise control option maintains the tractor's speed for mowing larger areas:
- To engage, lift up on the cruise lever and hold it until the foot is removed from the forward pedal.
- To disengage, lightly press and then release the forward pedal.
- For emergency stops, cruise can be released by pushing on the brake pedal or pushing down on the cruise control lever.
NOTE: Cruise control is available on all models except the E100, E110, and E140.
Kanzaki and Tuff Torq are trademarks of Kanzaki Kokyukoki Manufacturing Company.
Cast-iron front axle will not bend

The front axle is constructed of solid cast iron that will not bend:
- Automotive-like steering system with sector and pinion steering gears and single drag link with a tie rod provides a very strong, low-effort, and tight-turning system.
- Three grease fittings, on both steering spindles and center pivot, allow for regular lubrication to help maintain easy steering and minimize wear.
- Large, 1.9-cm (0.75-in.) diameter wheel spindles provide excellent durability.
Frame made of full-length welded steel for reliability


The solid one-piece frame is constructed of 12-gauge, 2.66-mm (0.105-in.) steel:
- Full-length, robotically-welded frame design has high-strength steel rails for added strength and long life.
- One-piece, steel fender deck is bolted to the frame.
Powerful engine features full-pressure lubrication for long life


A 14.2-kW (19-hp) single-cylinder engine has plenty of power and torque to handle tough mulching, mowing, and bagging conditions:
- Electronic ignition for fast starts
- Spring-return feature to ensure the operator will not mistakenly leave the throttle lever in the choke position
- Cast-iron cylinder liner for long engine life
- Overhead valves for excellent power and fuel economy
- Anti-vibration system
- Full-pressure lubrication and oil filter for cleaner oil, prolonging engine life and extending the time between oil changes
- More effective when operating the tractor on an incline
- Large fuel filter for trouble-free operation

No-tools oil drain valve is easy to access when changing engine oil.
Request a Quote
Error, ensure all information is entered
Your content has been submitted
Our Branches
Quairading
Lot 10 York Road, Quairading, WA, 6383
PO Box 71, Quairading, WA, 6383
Cunderdin
2 Great Eastern Highway, Cunderdin WA 6407
2 Great Eastern Highway, Cunderdin WA 6407
Mukinbudin
3 Shadbolt Street, Mukinbudin, WA, 6479
3 Shadbolt Street, Mukinbudin, WA, 6479
Northam
20 Yilgarn Avenue, Northam, 6401
PO Box 276, Northam, 6401
Narembeen
14 Latham Rd, Narembeen, WA, 6369
PO Box 303 Narembeen, WA, 6369
Merredin
Lot 1474 East Barrack Street, Merredin WA 6415
PO Box 250, Merredin, WA 6415
More Info
The information on this page is correct at time of publish and as per John Deere Aus. We reserve the right to change content at any time without prior notice. For more information please contact us.
Last Updated :
November 29,2018 10:10:14 Central Standard Time
Related Products

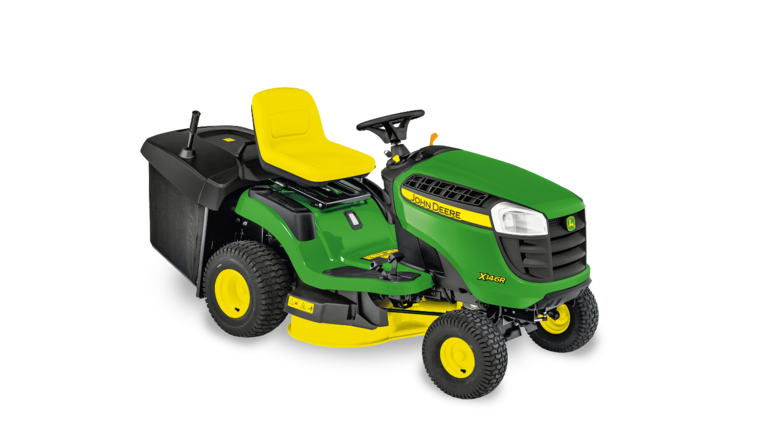

X146R
1900GX
X146R Rear-Collection Ride-on Mowers from John Deere. Speak to your local John Deere dealer today.

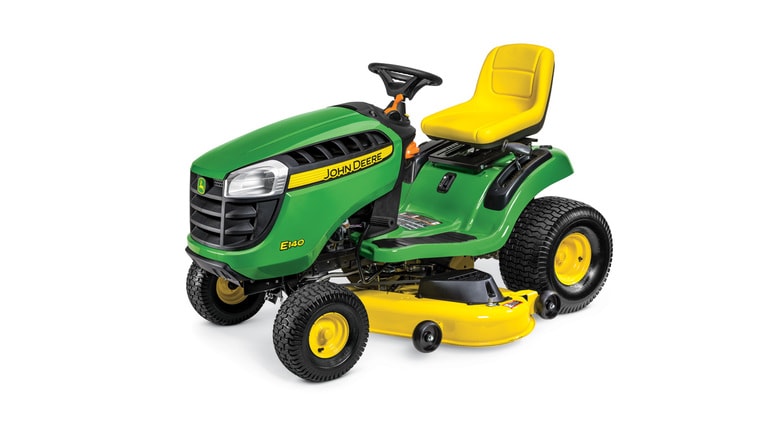

E140
1720GX
The E140 combines dependability, durability and power in every aspect of its construction, including a fully welded steel frame and a cast-iron front axle.

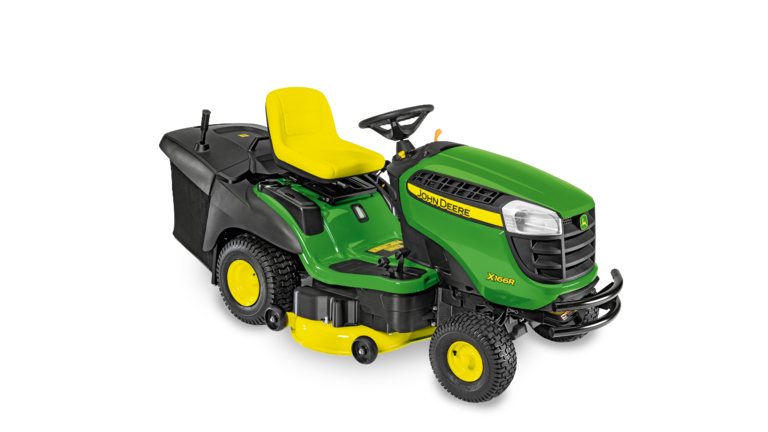

X166R
