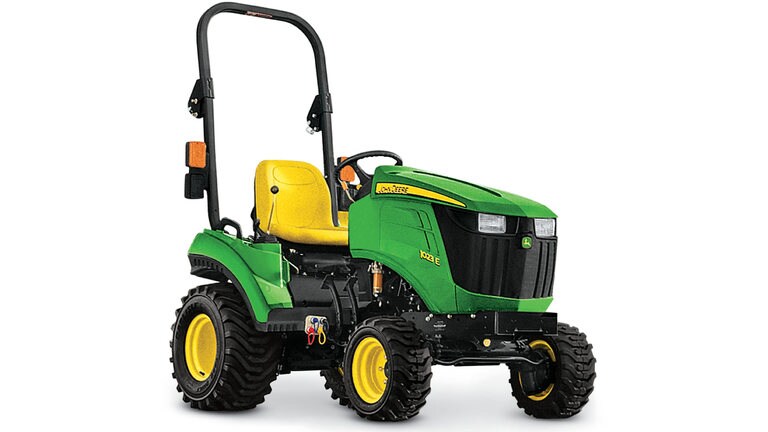

John Deere 1025R

028KLV

Commercial

Compact Utility Tractors

1 Series

  • Yanmar® Tier 4-compliant diesel engine
  • 3-Point Hitch - Category 1
  • Turf or Industrial tyres
  • Open Operator Station

Machine Features

Durable, efficient, high-torque 3-cylinder diesel engine

3-cylinder Yanmar TNV Series diesel engine3-cylinder Yanmar TNV Series diesel engine

Power is provided by a durable and efficient high-torque three-cylinder Yanmar® TNV Series diesel engine.



This series of engines was developed to meet Tier 4 environmental protection agency (EPA) environmental requirements by featuring low levels of both exhaust and emissions.

 Model

Number of
cylinders

Engine
displacement

Gross engine hp

Power take-off
(PTO) hp

1025R

3

1.267 L

24.2

 18.0

Yanmar TNV Series engine offers these features:
  • Economical for good cooling and long life
  • Isolated engine provides reduced vibration and noise for the operator; indirect fuel injection uses a pre-combustion chamber to give the engine a smooth and quiet operation; aluminum-alloy piston with built-in steel struts are lightweight to reduce connection rod bearing loads and provide good heat transfer characteristics
    • Design permits tighter tolerances and neutralizes expansion of the piston, thereby reducing blow-by gas and less noise from the piston slap
    • Higher top rings on the piston and a thinner head gasket greatly reduces the volume of unburned waste gases and increases combustion efficiency
  • Timing-gear teeth have a designed roll-off profile giving almost no clash, no noise, and no backlash
  • High-torque reserve provides plenty of power under heavy load, yet retains excellent fuel economy
  • Fuel filter with replaceable element
  • Full-pressure lubrication system provides filtered oil under pressure to all vital engine parts
  • Glow plugs provide quick starts in temperatures down to 18°C (0°F) (Optional engine coolant heater attachment will assist starting under more extreme conditions.)
  • Auto-bleed fuel system means there is no special bleeding required if the tractor runs out of fuel; this system will self-prime the injection pump, lines, and injectors, providing fast fuel recovery
  • Key start and shut off eliminates fuel shut-off knob
  • Electric solenoid shuts fuel supply off immediately when key is turned off
  • See-through coolant recovery tank permits operator to check coolant level without removing radiator cap
  • Dry-type air cleaner with safety element keeps dirt and other contaminants out of the engine

    • Safety element (second filter) will protect engine if primary filter would develop a leak
    • Protects engine when servicing primary filter
  • Side-screen panels and front-grille screen provide excellent flow of air to the engine compartment
  • Sealed-radiator compartment keeps trash and debris on outside of hood
  • Single-piece side panels can be removed for easy and quick access to the engine
  • Horizontal exhaust discharges fumes away from the operator station, reducing noise and improving operator visibility and comfort

Yanmar is a trademark of Yanmar Company Limited.

Mower deck lift components

1025R Tractor1025R Tractor
  • All 1 Family Tractors include factory-installed mechanical deck lift components.
  • The addition of these components from the factory reduces the time required to do the initial mid-mount mower deck installation at the time of purchase.
  • Refer to the mowers and material collection page for more details on mower deck installation and compatibility.

Easy-open, gas-lift hood

Gas-lift springGas-lift spring
  • The under-hood gas-lift support provides easy one-finger access to the engine compartment and eliminates the need for a mechanical prop rod.
  • This design of the support structure provides excellent rigidity for the hood.

Open operator's station is comfortable and convenient

Open operator's stationOpen operator's station

The 1025R operator's station has been designed to allow greater operator comfort and increased visibility. Large and easy to grab handrails are located on each fender for an easier on and off of the tractor from either side.

  • Sloping hood design provides improved visibility
  • Operator's station provides plenty of room for comfortable operation
  • Step-through textured flat operator station makes getting on and off the tractor easy from either side of the tractor
  • Fender-mounted handrails are large and easy to grab; located on each fender, they assist the operator in getting on and off the tractor
  • Controls are located next to the fenders for operator convenience
  • Operator controls are color-coded for easy identification of operation
  • Front-horizontal exhaust for increased operator visibility

*Features shown are available with all current model year tractors.

Operator presence systemOperator presence system
  • If the operator leaves the tractor seat when the transmission, mid or rear power take-off (PTO) is engaged, the engine will shut down
Foldable Roll-Gard ROPS Foldable Roll-Gard ROPS

Foldable Roll-Gard™ rollover protective structure (ROPS) and retractable-seat belt are standard equipment to protect the operator in the event of a tractor tip-over, as well as improve the ability to store tractor in a garage.



Seat belt is within easy reach of the operator, to encourage the use of it whenever operating the tractor.

*Features shown are available with all current model year tractors

Lighting
Standard (and optional) lighting shownStandard (and optional) lighting shown

Standard equipment lighting includes:

  • Two front-mounted sealed-beam halogen headlights
  • Two amber-flashing warning/hazard lights mounted on the side of the ROPS with reflectors
  • Two additional fender lights are standard on the 1025R
  • Additional front- and rear-light kits are available

*Features shown are available with all current model year tractors

Optional iMatch™ Quick-Hitch allows for easy implement hookup

iMatch Quick-HitchiMatch Quick-Hitch
iMatch Quick-Hitch with rotary cutter hookupiMatch Quick-Hitch with rotary cutter hookup
iMatch Quick-Hitch (LVB25976)iMatch Quick-Hitch (LVB25976)

One of the greatest customer concerns involves difficulty in attaching tractor implements. John Deere has addressed this issue with the iMatch Quick-Hitch.

The iMatch Quick-Hitch provides easy hookup and a guaranteed fit for all Category 1 implements that are designed to meet the ASABE Category 1 Standard S278.6 for quick-attach hitches.

  • All implements require a set of bushings in order for the attachment to fit and work properly with the iMatch Quick-Hitch. One set of bushings comes with the iMatch Quick-Hitch.

NOTE: The bushing set can be seen in the picture above. These bushings allow the hooks on the iMatch and the pins on the implement to fit together properly. All other implements (box blades, tillers, rear blades, etc.) will require a set of bushings to enlarge the pin to fit with the iMatch hooks. Bushings of different lengths can be found in the parts system or through a bushing supplier (see dimensions below).

  • Upper bushing
    • Inside diameter: 1.93-1.95 cm (0.76-0.77 in.)
    • Outside diameter: 3.15-3.18 cm (1.24-1.25 in.)
  • Lower bushings
    • Inside diameter: 2.24-2.26 cm (0.88 to 0.89 in.)
    • Outside diameter: 3.63-3.66 cm (1.43 to 1.44 in.)

Hydrostatic transmission (HST) with Twin Touch™ foot controls

The 1023E and 1025R Tractors feature a HST.

  • Fluid under pressure transmits engine power to the drive wheels through a hydraulic pump and motor
  • The hydrostatic-drive unit functions both as a clutch and transmission
Twin Touch foot controls Twin Touch foot controls

Twin Touch foot controls allow selecting both speed and direction of travel with a touch of the toe. Ideally suited for jobs where productivity is a must, such as loader or mower applications.

  • Infinite ground speeds, even at full throttle, to match the job
  • No clutching for fast direction changes
  • Faster, easier, and more precise to operate than competitive tractors with treadle pedal design (toe-heel)
  • Provides high torque for start up
  • Reduces power train shock loads
  • Large foot pedals were designed for operator comfort and allow for convenient operation of the tractor
Two-speed transmissionTwo-speed transmission

Transmission has two speeds - Hi and Lo range.

  • The range lever is located next to the seat, conveniently within reach of the operator
  • Lo range allows performing tougher tasks at higher speeds than competitive tractors equipped with a three-range transmission (that is, lo range on three-speed transaxle is slower than lo range on a two-speed transaxle)



Durability features include:

  1. Large forged one-piece trunnion shaft with larger support bearings that reduce vibration and noise.
  2. Innovative transaxle combines an HST, gear reduction axle, and clutch.
  3. Pressure side filtration allows using a finer-mesh filter (10 micron) than suction filtration systems use on many competitive tractors.
  4. One pump to supply charge pressure and implement flow. A flow divider splits the flow to various circuits throughout the tractor.
  5. The transaxle has an oil cooler which provides improved hydraulic cooling performance.

Implement compounding improves efficiency

Implement compounding (1025R Tractor shown)Implement compounding (1025R Tractor shown)
  • Allows mounting more than one implement at a time, eliminating implement changeover
  • Loader, mid mower, backhoe, and a variety of 3-point hitch implements can be attached to the tractor at the same time

Fast and easy implement changeover

  • Front Quik-Tatch™ hitch makes changing front implements quick and easy
  • All front implements (blade and brooms) use a common hitch
  • AutoConnect™ mid-mount mower decks, 120R Loaders, and 260 Backhoe can be taken on or off within 5 minutes, and no tools are necessary
  • Changing rear implements is a snap with the iMatchTM Quick-Hitch, which has three fixed points to back in and pick up a rear implement that is iMatch compatible

*Features shown are available with all current model year tractors.



Powerful Tier 4-compliant diesel engine and standard dual mid-selective control valve (SCV)

Powerful engine
  • Tier-4-compliant isolated Yanmar® TNV clean and silent diesel engine
  • 24.2 gross hp (PS) - 18.0 power take-off (PTO) hp
  • 3200 rpm rated speed
Strong hydraulics
  • Standard dual mid-selective control valve (SCV) with integrated loader joystick
  • Third-SCV kit
  • Power-beyond kit
  • Independent hydraulic-lift kit
Comfortable operator station and controls
  • Ag tractor family styling with sloping hood design
  • Folding rollover protective structure (ROPS)
  • Deluxe-suspension seat with armrests
  • Standard cruise control
  • Tilt steering
  • Standard tool box
  • 12-V outlet
  • Ergonomic-floor mat
  • Cup holder
  • Standard side fender lights
Versatile implements
  • H120 Loaders
  • 54D AutoConnect™ mower deck and 60D AutoConnect 7-Iron™ mower deck
  • Material-collection system
  • 260 Backhoe
  • iMatch™ AutoHitch™ system
  • Rotary brooms 132.1 cm and 152.4 cm (52 in. and 60 in.)
  • Front blade 137.2 cm (54 in.)
  • Rotary tillers (647)



Yanmar is a trademark of Yanmar Company Limited.

Easy operation four-wheel drive (4WD) power steering

Both 4WD and power steering are standard equipment on the 1025R. This combination allows for excellent maneuverability and ease of operation of the tractor.

  • Narrow overall width allows the 1025R to work in tight areas where most compact tractors just cannot fit, yet the 144.8-cm (57-in.) wheel base and 119.4 cm (47 in.) overall width gives great stability for all type of terrains.
  • Power steering means fewer turns of the steering wheel than manual steering; especially valuable when mowing around obstacles or when the tractor is used with a front loader.
  • High horsepower-to-weight ratio makes the 1025R a good choice for a variety of tasks; overall tractor weight reduces ground compaction and makes the 1025R an excellent mowing tractor.
  • The power take-off (PTO) is a fully-independent PTO on the 1025R, allowing engaging and disengaging of the PTO without stopping tractor movement. This is important when driving across obstacles such as driveways while mowing.
